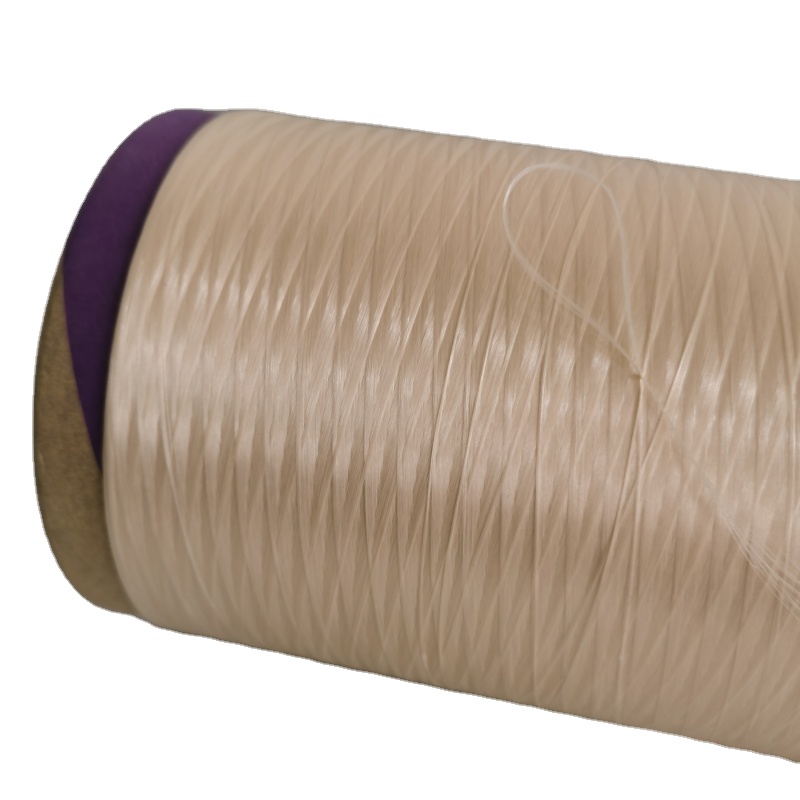

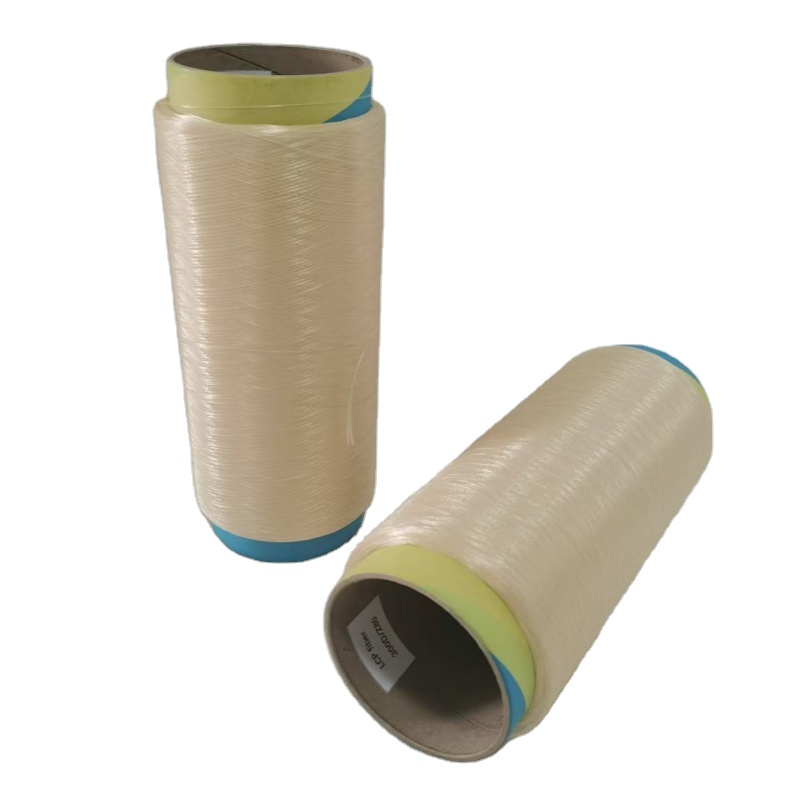

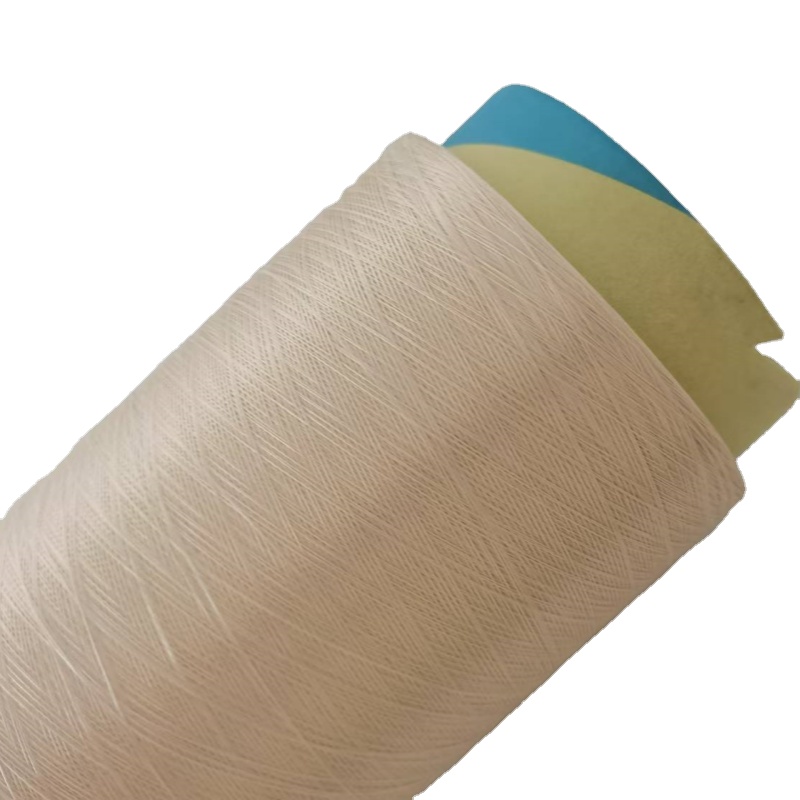

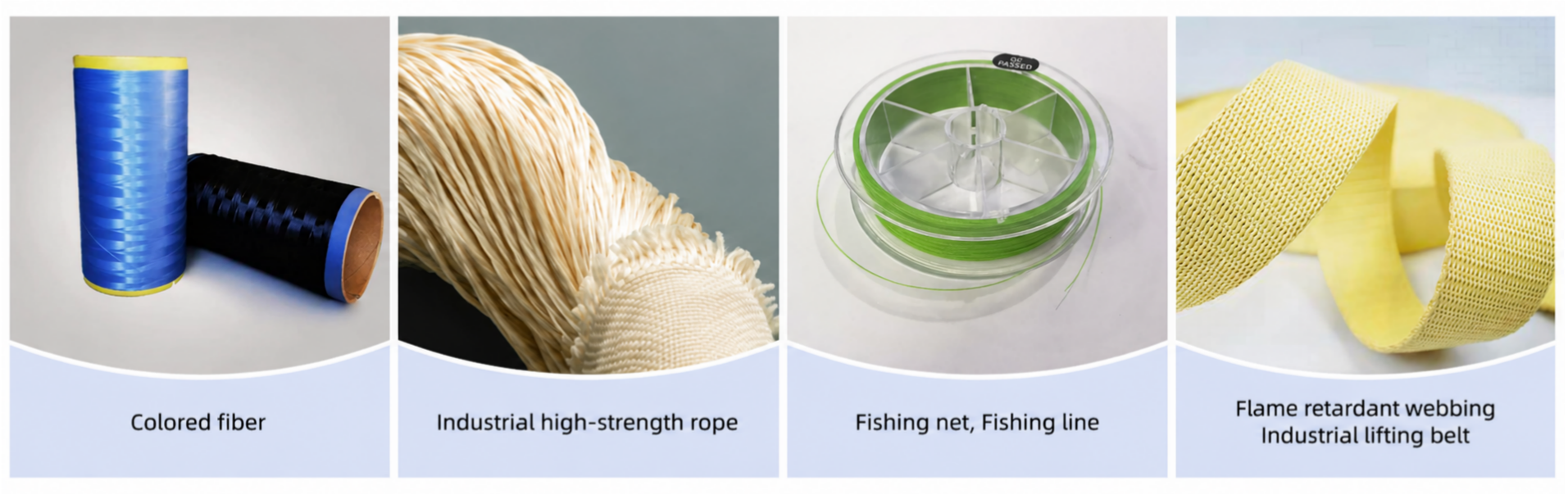

LCP fiber is a high-tech fiber with excellent comprehensive properties such as high strength, high modulus, high/low temperature resistance, self flame retardancy, chemical resistance, radiation resistance, low dielectric constant, high transparency, excellent vibration reduction performance, and strong dimensional stability. It has a wide range of applications in 5G substrates, special protection, electronic cables, optical cable reinforcement, marine engineering, rope cables, ropes and other fields. At the same time, it will also have broad application prospects in sports equipment, outdoor leisure, elastomer reinforcement, building reinforcement and other fields.
High strength series: 5D |10D |15D |20D |25D | 50D | 100D | 200D | 400D | 500D | 750D | 1000D | 1500D | 3000D
High modulus series: 400D |1000D | 1500D | 3000D

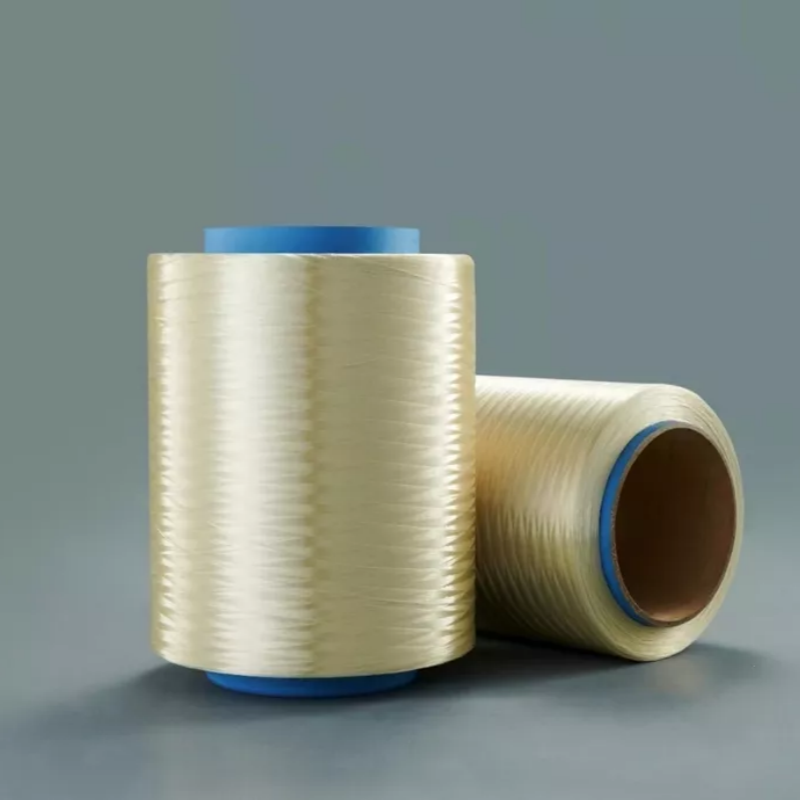

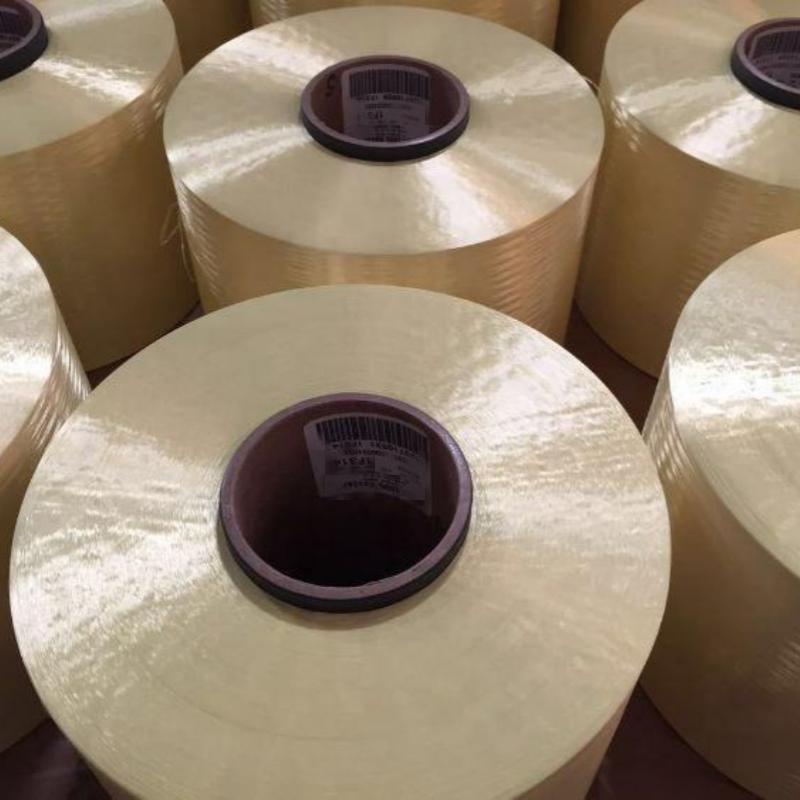

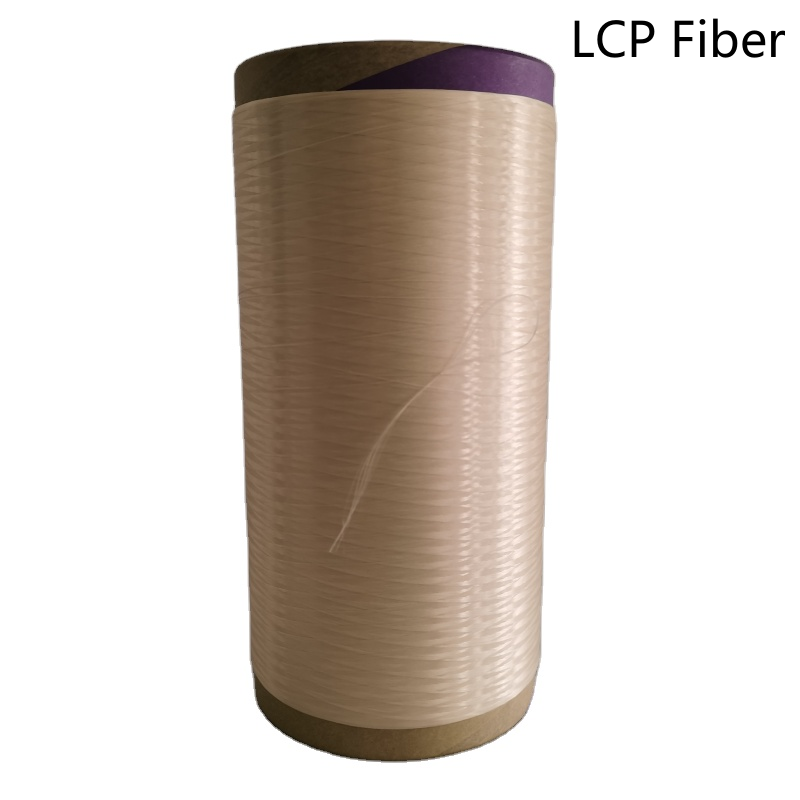

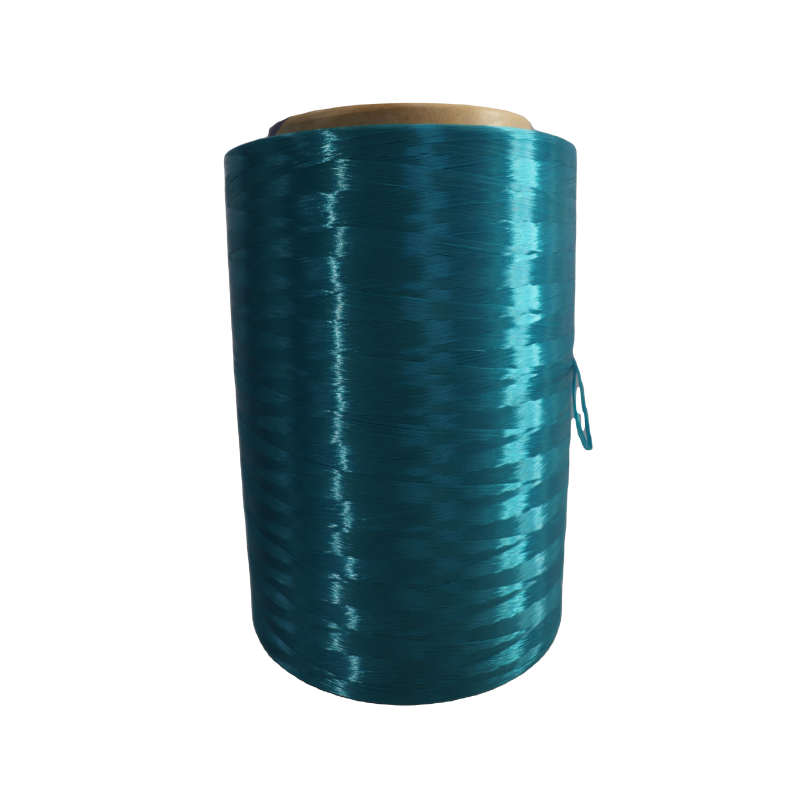

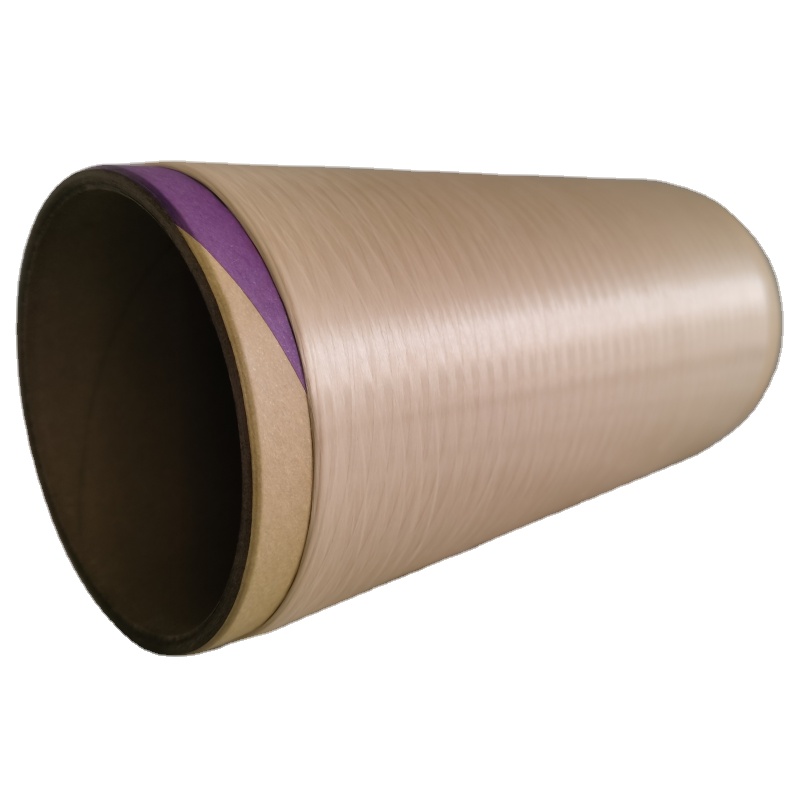

High-performance liquid crystalline polyarylate fiber
LCP fiber is a high-tech fiber with excellent comprehensive properties such as high strength, high modulus, high/low temperature resistance, self flame retardancy, chemical resistance, radiation resistance, low dielectric constant, high transparency, excellent vibration reduction performance, and strong dimensional stability. It has a wide range of applications in 5G substrates, special protection, electronic cables, optical cable reinforcement, marine engineering, rope cables, ropes and other fields. At the same time, it will also have broad application prospects in sports equipment, outdoor leisure, elastomer reinforcement, building reinforcement and other fields.
| Specifications | Type | Standard | Strength
(kg) | Tensile strength
(g/d) |
| 25D | HTH | Ultra strength | 0.68 | 27.2 |
| 25D | HTC | Common strength | 0.6 | 24 |
| 50D | HTH | Ultra strength | 1.3 | 26 |
| 50D | HTC | Common strength | 1.1 | 22 |
| 100D | HTH | Ultra strength | 2.6 | 26 |
| 100D | HTC | Common strength | 2.2 | 22 |
| 130D | HTH | Ultra strength | 3.3 | 25.4 |
| 200D | HTH | Ultra strength | 5.2 | 26 |
| 200D | HTC | Common strength | 4.3 | 21.5 |
| 250D | HTH | Ultra strength | 6.5 | 26 |
| 250D | HTC | Common strength | 5.3 | 21.2 |
| 400D | HTH | Ultra strength | 10 | 25 |
| 400D | HTC | Common strength | 8.6 | 21.5 |
| 1000D | HTH | Ultra strength | 24.9 | 24.9 |
| 1000D | HTC | Common strength | 20.4 | 20.4 |
| 1500D | HTH | Ultra strength | 37.4Kg | 24.9 |
| 1500D | HTC | Common strength | 30.6Kg | 20.4 |
| 3000D | HTH | Ultra strength | 74.8Kg | 24.9 |
| 3000D | HTC | Common strength | 61.2Kg | 20.4 |
Liquid crystal polyarylester materials make people dare to accept higher challenges. It can be used for various industries, accessories, and equipment, making it safer, stronger, and more stable in the long term. It is lightweight, durable, and has extremely high comprehensive strength and modulus. Polyaromatic polyester fibers were first used as landing airbag materials for NASA's Mars probe, and with the continuous development of technology, they have opened up more extensive and localized application scenarios. In the fields of industrial production protection, material lightweighting, and safety protection, new applications are constantly being opened up. Its presence can be found on high-speed tracks, in extremely cold and hot regions with harsh conditions, and even in the fields of ocean and space.
